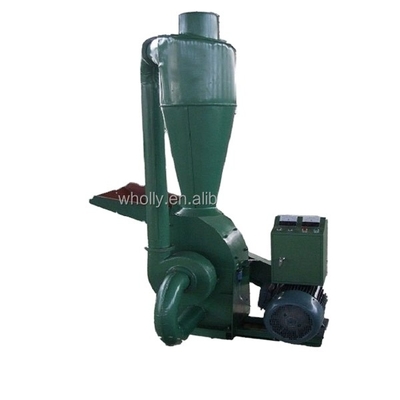

Diesel engine hammer mills are used for grinding the biomass materials like straw, stalk and wood chip, tree branch and forest waste to be powders, the size ranges from 1mm to 6mm, which is right size before pelletizing and briquette. It is also ideal machine for farming material like dry or fresh seeding of yam, peanut, rice and other plants, husks, maize, wheat, beans of all grain.
|
Hammer Mills |
||||
|
Model NO. |
Power |
Output(kg/h) |
NW/GW(kgs) |
Packing(cm) |
|
CF158 |
2.2KW/220V 2.2KW/380V |
60-150 |
75/95 |
80*68*59 |
|
55/75 |
||||
|
CF198A |
7.5Hp gasoline engine |
150-350 |
120/140 |
68*58*98 |
|
90/110 |
||||
|
CF198B |
4KW/380V Electric motor |
150-350 |
120/140 |
68*58*98 |
|
90/110 |
||||
|
CF420A(1) |
15 Hp Diesel engine |
350-550 |
360/400 |
147*74*111 |
|
320/360 |
||||
|
CF420A(2) |
22 Hp Diesel engine |
400-750 |
360-400 |
147*74*111 |
|
320-360 |
||||
|
CF420B(1) |
7.5KW/380V Electric motor |
350-650 |
260/320 |
112*82*107 |
|
220/280 |
||||
|
CF420B(2) |
11KW/380V Electric motor |
400-700 |
320/360 |
112*82*107 |
|
220/280 |
||||
|
CF500A |
55 Hp Diesel engine |
850-1100 |
800/840 |
150*142*123 |
|
760/800 |
||||
|
CF500B |
22KW/380V Electric motor |
800-1100 |
600/630 |
143*62*80 |
|
560/590 |
||||
