Technical Data
Specifications of rice mill equipment | |
Model Number | HB15/15IIIZ |
Color | Blue and white |
Shape | Combined |
Brand Name | SanGao |
Output | 950-1350KG/H |
Power | 17.95 KW Motor |
Weight of Machine | 1090KG |
Measurement | 2600*2560*2850 mm |
Packing Details | Wooden cases |
If you would like to cooperate with us, you may need to know | |
Add.of us | Shandong Province of China |
Nearest port | Qingdao |
Our Supply ability | 1500 Sets/Year |
Sets in 20ft container | 4 Sets |
Payment terms | T/T |
Delivery Date | 20 days |
MOQ | 1 Set |
Quality Control | We are factory, we are strict with the quality |
Detail Shows
(1) Raw Paddy
(2) Cleaned Paddy
(3) Mixture of paddy and brown rice
(4) Paddy
(5) Mixture of paddy and brown rice
(6) Brown rice
(7) White rice
1. Brief Indroduction

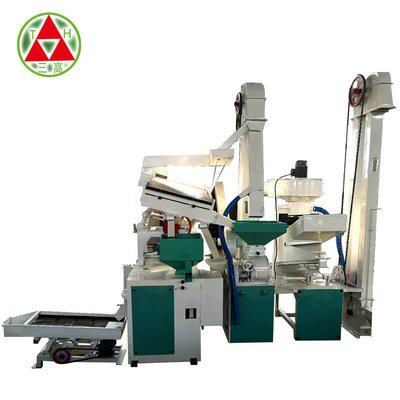

This model is made on basis of adopting the advantages of Model HB15/15IIIZ with great elaboration.It is equpped with the automatic feeding device,cleaning sieve, stone separator, rubber roller paddy husker, chaff blower, gravity sieve for separating the paddy and browen rice, emery roller for milling,high pressure blower, fine chaff blower, and etc.
It has the characters of production of compact structure, beautiful appearance, small vslume, high output, less power consumption, less broken rice production and production of rice with high purity. It can process paddy into national stangard rice just once, therefore it is the most ideal paddy-processing maching for grain distribution station, mountainous area and farm as well as self-employees.
2. Construct
1. Elevators:
It includes two kinds elevators, single chain and double chain.
Single chain is for raw paddy, and double chain for paddy separator.
2. De-stoner:
The de-stoner could remove dusty and stone from raw paddy, it also include high press blower, to help clean the paddy.
3. Rice Huller:
Rice huller with double 6” Rubber Rollers. Remove chaff from Paddy.
Rice huller with a high pressure blower.
4. Paddy Separator:
Separating Brown rice, paddy, and mixture of paddy and brown rice.
5.Rice Whitener:
Mill brown rice into white rice. This rice whitener with emery roll, and high pressure blower and Bran collection device.
1. High purity and Less power consumption
2. Compact structure
3. Easy to operate and convenient maintain
4. Have a special dust control equipment, it is eco-friendly.
5. Superior performance and reliable quality
6. Be suitable for commercial processing plant and rural users.
Specification
This machine is used to grind the rice , shelling rice husk at the same time.It can separate the husk
and rice .
Function Principle
When the boot grind grain, the rice from the hopper into the flow, roller, rice knives, rice sieve composed of milled white room, by the mechanical The role of cutting edge grinding to complete the processing of rice milling.the effect of fan getting the clean and dust-free rice bran , the broken rice meters of slip from the screen separator to separate into the broken shed after collection device, which enables the isolation of rice and rice bran crushed into dust.
We are professional manufacture of rice mill,Set of rice mill,Disk,Rice Polisher,Accessories of Rice Mill, Our products include: |
1.Rice Mill SB Series: |
SB-5,SB-10D,SB-30,SB-50,SB-50A |
2.Rice Mill NZJ Series: |
NZJ-10/8.5,NZJ-10/8.5F,6NZJ-15/8.5B |
3.Rice Mill LNT Series |
LNTF80S,LNTF115S,LNTF150S,LNT115A,LNT150A,LNT200A |
4.Emery Roll |
NF-15A |
5.Rice Huller |
LM24-2C |
6.Set of rice mill |
HB15/15,SB15/15IIIZ, |
7.Coffee Huller |
CR900 |
8.Disk |
9FQ-40B,9FQ-50B,FFC*15,FFC-23,FFC-37,FFC-45, |
9.Rice Separator |
MJP63*3,MJP80*3,MJP100*3 |
10.Cleaning Stone |
QSC-56,SQ-36(JLX280),TQSC-56 |
11.Iron Rice Mill |
N50,N70,N80,N110,N120,SN115,N160/SN150 |
12.Emery Mill |
NNMF18,NNMF25,NNMF30 |
13.Rubber Roller |
2.5",4",6",10" |
14.Destone |
JLX280,QSC56,TQSC50,TQSC70,TQSC100,TQSF63 |
TQSF80,TQSF100,TQSF120 |
15.Clear Stone |
TQLZ80,TQLZ100,TQLN100*2,TQLN125*2 |
16.MGCZ Series gravity paddy separator |
MGCZ100*5,MGCZ100*6,MGCZ100*7,MGCZ100*8,MGCZ100*10, |
MGCZ100*12,MGCZ100*14,MGCZ80*5,MGCZ80*6,MGCZ100*5, |
Pre-sale Service
- Detailed design of lay-out that is the position of the procession.
- Technological information of provided products.
- Schedule about design, manufacturing and installation.
- Working & Producing progression.
- Training course for the technician so that the installation is safe and standad.
After-sale Service
- For customers buying our products, we provide them free training so that they can use and maintain the machine independently.
- We will answer customer's question on technology in time. If needed, we will offer on-site guidance and assistance.
- We can provide free technical guidance if customers need new equipment, add or rebuild equipment.
- We will prioritize the product upgrade of former customers.
