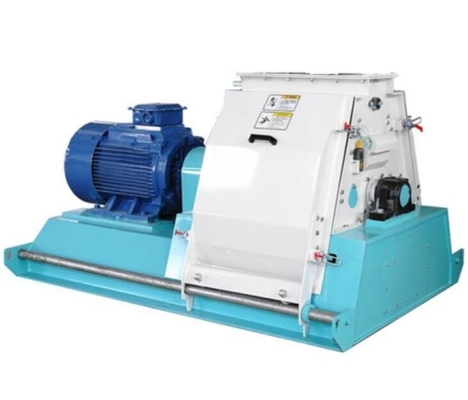

CE SFSP Hammer mill wood chips grinding machine wood crusher wood sawdust grinder
1.Advantage:
1.1.The grinding chamber is designed with regrinding,which can increase its output by more than 15% and the sizes are more even.
1.2.Equipped with wear resistant hammer that is alternate permutation,the finished products ane high in accuracy and uniform in size.
1.3.Vacuum welded hammers and surface hardened hammer pin extend the service life and futher decrease the consumption of accessories.
1.4.By changing the hammer position on the rotor,two crush of gaps are formed between hammers and screen,which are fit to normal crushing and fine crushing.When in normal crushing,it can crush evenly and improve the production capacity. When the gap between hammer and screen is smaller,it fit to fiber crushing and fine crushing.
1.5.The rotor os rotatable clockwis and counterclockwise and materials can be fed bidirectionally,which decreases the wear of hammers and thus lowers the consumption of accessories.The rotor has experienced dynamic balance test,ensuring less vibration and long service life.
1.6.There are quick access doors set on both sides of the mill to facilitate maintenance and change of screen,and doors can be locked quickly.
2.Technical Parameters:
|
Item |
66*40 |
66*60 |
66*80 |
66*100 |
66*120 |
||||||
|
Rotor diameter (mm) |
660 |
660 |
660 |
660 |
660 |
||||||
|
Spindle rotate speed (rpm) |
2960 |
2970 |
2970 |
2980 |
2980 |
||||||
|
Hammer line speed (m/s) |
102 |
102 |
102 |
102 |
102 |
||||||
|
Grinding room width (mm) |
400 |
600 |
800 |
1000 |
1200 |
||||||
|
Hammer quantity (fine grinding) |
40 |
56 |
84/116 |
120 |
136 |
||||||
|
Power( kw) |
37 |
45 |
55 |
75 |
90 |
110 |
132 |
160 |
200 |
220 |
|
|
Capacity(t/h) |
0.5-1 |
1.5-2 |
2-2.5 |
2.5-3 |
3-4 |
4-5 | 5-6 |
5-7 |
6-8 |
8-10 |
|
|
Normal air volume ( m3/min) |
Fine grinding |
55 |
60 |
72 |
78 |
95 |
102 |
145 |
155 |
190 |
205 |
Photos:
Real Photos:
Stainless steel hammer mill:
Details:
Making:
Used in wood pellet line:
Delivery:
Customer visiting:
About us:
Our company Liyang Zeji Machinery Co., Ltd. is a professional manufacturer focus on: hammer mill, mixer, feed/wood pellet machine, cooler, crumbler, screener, extruder, dryer, packing machine, liquid adding machine, conveyors and spare parts: wood chipper fly-knives, hammer mill blades/screen, ring die, roller and other pellet machines’ spare parts.
For machines, we have own laser cutter, CNC machining center, welding machines. For ring die, we have own auto gun-drilling machines (12 sets), auto counter-sinking machines, auto lathing machines, vacuum heat treatment machines.
We insist on high quality and competitive price, looking for long term business and win-win.
Certificate:
Why choose us:
1. Manufacturer with over 20 years experience.
2. All use top brand parts.
3. Overseas engineers’ installing+testing+training.
4. 3 years quality warranty+lifetime engineers online after sale service.
5. Machines' using life can be over 30 years.
